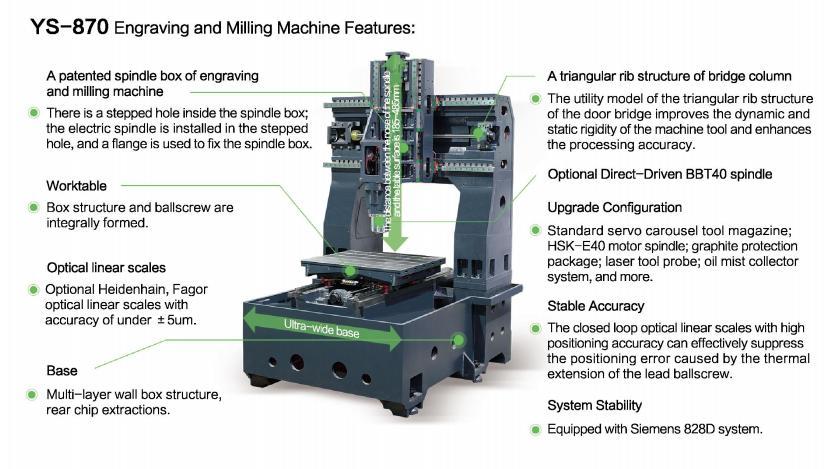

Engraving and Milling Machine YS-870A
parameters specification Subject Specifictions Unit Parameter Travel X/Y/Z axis mm 800/700/350 Spindle Nose to Worktable mm 130-430 Three-Axis Guideway / Linear Guideway Door Width / 810 Worktalbe Worktalbe Size (L*W) mm 720*640 Maximun Table Load kg 400 T-Slot no/mn 5-16×120 Spindle Spindle taper type BT-30 Spindle speed rpm 24000 Spindle Drive Type / Bulit-In Feedrate Rapid Traverse (X/Y/Z) m/min 15/15/12 Cutting Feedrate (X/Y/Z) m/min 12 Tool Changer Tool Changer / Carousel Motor Spindle Motor kw 7.5 Three-Axis Servo Motor kw 0.85/0.85/1.3 Accuracy Accuracy mm ±0.005 Repeatability mm ±0.003 Power Required Power Requirements kva 10 Air Pressure Requirements kg/c㎡ 6^8 Others Extermal Dimensions(L*W*H) mm 2100/2700/2550 Gross Weight t 4.7
Key words:
Classification:
Product Details
parameters specification
| Subject | Specifictions | Unit | Parameter |
| Travel | X/Y/Z axis | mm | 800/700/350 |
| Spindle Nose to Worktable | mm | 130-430 | |
| Three-Axis Guideway | / | Linear Guideway | |
| Door Width | / | 810 | |
| Worktalbe | Worktalbe Size (L*W) | mm | 720*640 |
|
kg | 400 | |
| T-Slot | no/mn | 5-16×120 | |
| Spindle | Spindle taper | type | BT-30 |
| Spindle speed | rpm | 24000 | |
| Spindle Drive Type | / | Bulit-In | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 15/15/12 |
| Cutting Feedrate (X/Y/Z) | m/min | 12 | |
| Tool Changer | Tool Changer | / | Carousel |
| Motor | Spindle Motor | kw | 7.5 |
| Three-Axis Servo Motor | kw | 0.85/0.85/1.3 | |
| Accuracy | Accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirements | kva | 10 |
| Air Pressure Requirements | kg/c㎡ | 6^8 | |
| Others | Extermal Dimensions(L*W*H) | mm | 2100/2700/2550 |
| Gross Weight | t | 4.7 |
