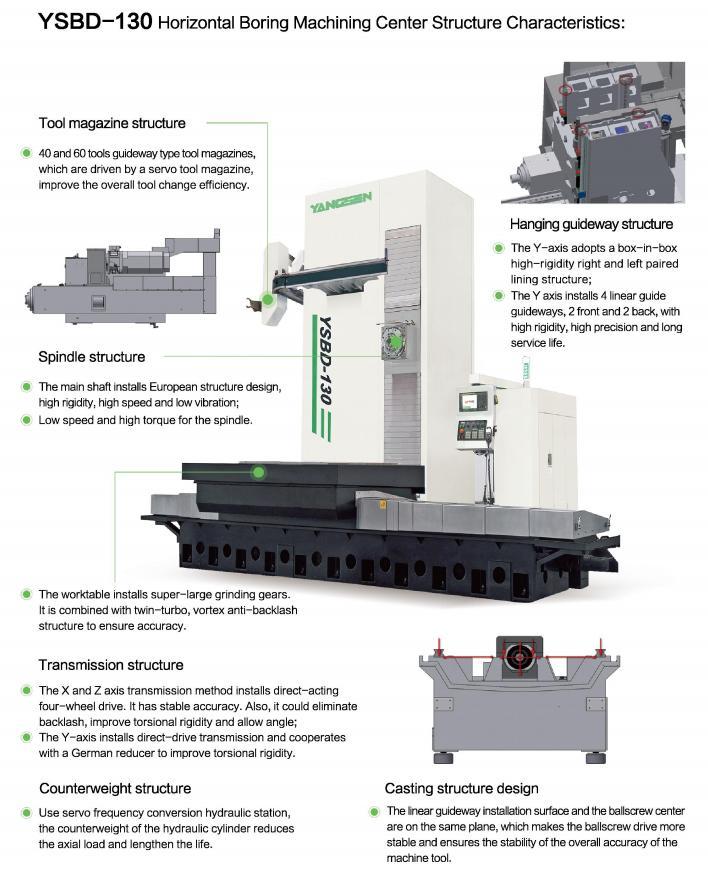

Horizontal Boring Machine Center YSBD-130

parameters specification Model YSBD-130/8T YSBD-130/15T YSBD-130/20T Subject Specifictions Unit Travel X-Axis(Standard) mm 2500 3000 4000 X-Axis(Optional) mm 2500/3000/3500 3500/4500/5500 4500/5500/6500 Y-Axis(Standard) mm 2000 2600 3200 Y-Axis(Optional) mm 2600 3200 3500 Z-Axis(Standard) mm 1500 1500 2000 Z-Axis(Optional) mm 2000 2000 2500 W-Axis（Standard) mm 700 700 700 Worktalbe Worktalbe Size Standrad(L*W) mm 1400×1600/8T 1800×2200/15T 2500×2500/25T Worktalbe Size Opyion(L*W) mm 1600×1800/10T 2500×2500/20T 2500×2500/40T Table Indexing deg 0.001° 0.001° 0.001° T-Slot mm 24H7×200×7 24H7×200×7 28H7×200×11 Spindle Spindle Nose to Worktable mm 75~2075 75~2675 75~3275 Spindle Nose to Table Center mm -40~2460 60~2260 165~2865 Spindle Diameter mm Φ130 Φ130 Φ130 Spindle Type / BT50 BT50 BT50 SpindleR.P.M rpm 3000 3000 3000 Spindle Transmission / Belt Feedrate X/Y/Z Cuttting Feedrate m/min 10/10/10/5 10/10/10/5 10/10/10/5 X/Y/Z Rapid Traverse m/min 10/10/10/8 10/10/10/8 10/10/10/8 Tool Changer Tool Storage Capacity / 60 60 60 Tool Selection Method / Servo Drive Max.Tool Diameter kg 25 25 25 Max.Tool Weight mm 500 500 500 Max.Tool Length mm Φ120/Φ250 Φ120/Φ250 Φ120/Φ250 Tool Change Time sec 14 14 14 Motor Spindle Motor kw 22/30 22/30 22/30 Maxium Torque Nm 3011/4108.5 3011/4108.5 3011/4108.5 Accuracy Indexing Accuracy arc/sec 10″ 10″ 10″ Indexing Repeatability arc/sec ±4″ ±4″ ±4″ Position Accuracy mm 0.01 0.01 0.01 Respeatability mm 0.005 0.005 0.005 Power Required Air Pressure Requirement kg/c㎡ 6 6 6 Power Requirement kva 90 95 95 Others Extemal Dimensions(L*W*H) mm 6900×6100×5000 8000×7500×5500 9000×8800×6100 Gross Weight t 41.5 45 54

Key words:

Classification:

Boring machine

Message

Product Details

parameters specification

Model YSBD-130/8T YSBD-130/15T YSBD-130/20T
Subject Specifictions Unit
Travel X-Axis(Standard) mm 2500 3000 4000
X-Axis(Optional) mm 2500/3000/3500 3500/4500/5500 4500/5500/6500
Y-Axis(Standard) mm 2000 2600 3200
Y-Axis(Optional) mm 2600 3200 3500
Z-Axis(Standard) mm 1500 1500 2000
Z-Axis(Optional) mm 2000 2000 2500
W-Axis（Standard) mm 700 700 700
Worktalbe Worktalbe Size Standrad(L*W) mm 1400×1600/8T 1800×2200/15T 2500×2500/25T
Worktalbe Size Opyion(L*W) mm 1600×1800/10T 2500×2500/20T 2500×2500/40T
Table Indexing deg 0.001° 0.001° 0.001°
T-Slot mm 24H7×200×7 24H7×200×7 28H7×200×11
Spindle Spindle Nose to Worktable mm 75~2075 75~2675 75~3275
Spindle Nose to Table Center mm -40~2460 60~2260 165~2865
Spindle Diameter mm Φ130 Φ130 Φ130
Spindle Type / BT50 BT50 BT50
SpindleR.P.M rpm 3000 3000 3000
Spindle Transmission / Belt
Feedrate X/Y/Z Cuttting Feedrate m/min 10/10/10/5 10/10/10/5 10/10/10/5
X/Y/Z Rapid Traverse m/min 10/10/10/8 10/10/10/8 10/10/10/8
Tool Changer Tool Storage Capacity / 60 60 60
Tool Selection Method / Servo Drive
Max.Tool Diameter kg 25 25 25
Max.Tool Weight mm 500 500 500
Max.Tool Length mm Φ120/Φ250 Φ120/Φ250 Φ120/Φ250
Tool Change Time sec 14 14 14
Motor Spindle Motor kw 22/30 22/30 22/30
Maxium Torque Nm 3011/4108.5 3011/4108.5 3011/4108.5
Accuracy Indexing Accuracy arc/sec 10″ 10″ 10″
Indexing Repeatability arc/sec ±4″ ±4″ ±4″
Position Accuracy mm 0.01 0.01 0.01
Respeatability mm 0.005 0.005 0.005
Power Required Air Pressure Requirement kg/c㎡ 6 6 6
Power Requirement kva 90 95 95
Others Extemal Dimensions(L*W*H) mm 6900×6100×5000 8000×7500×5500 9000×8800×6100
Gross Weight t 41.5 45 54
