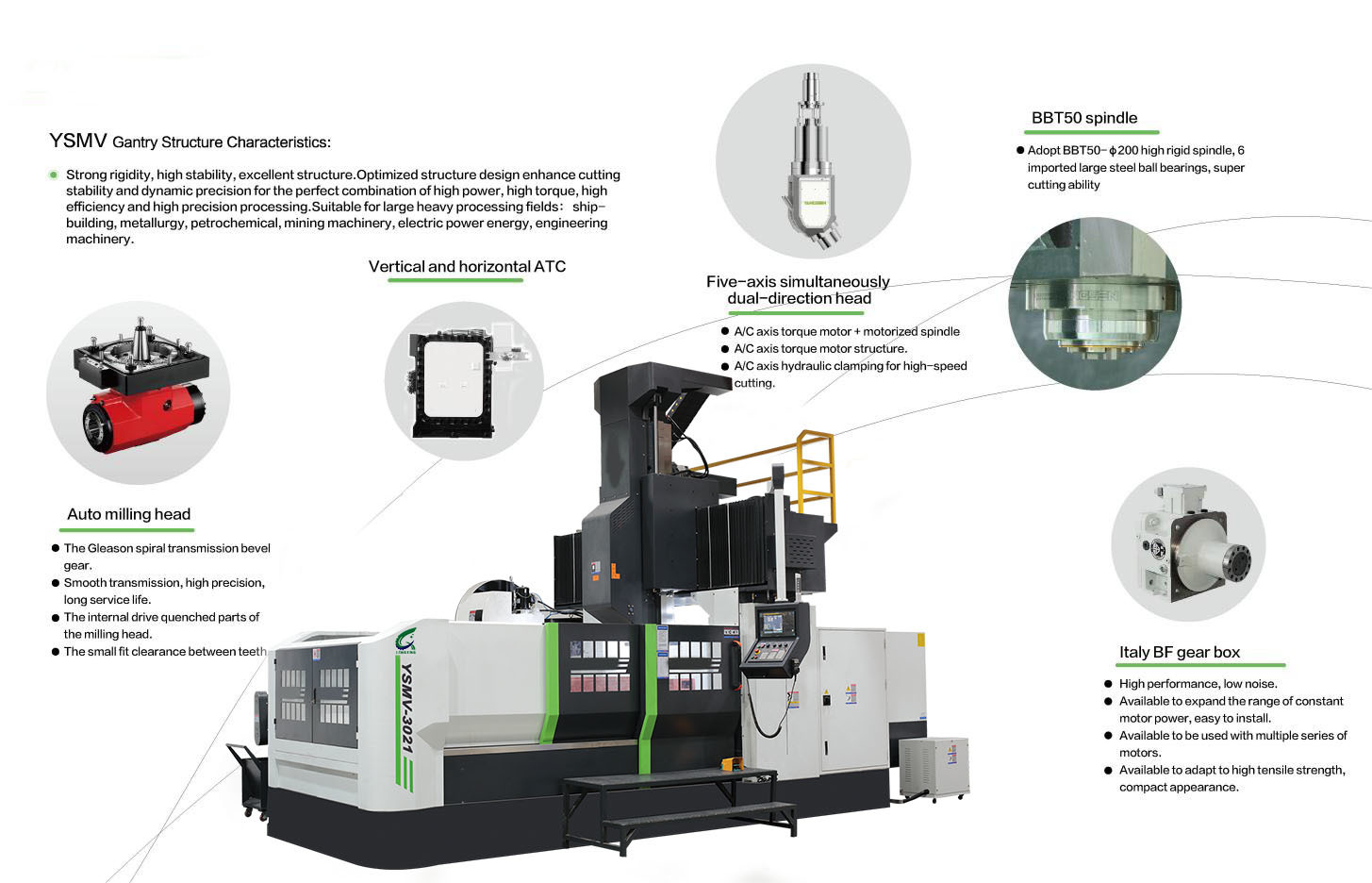

Gantry machining center YSMV-3021
parameters specification Subject Specifictions Unit Parameter Travel X-Axis mm 3000 Y-Axis mm 2100 Z-Axis mm 1000 Spindle Nose to Worktable mm 200-1200 Three-Axis Guideway / XYZ Heavy Load Roller Liner Guideway Door Width / 2100 Worktalbe Worktalbe Size (L*W) mm 3000×1800 Maximun Table Load t 10 T-Slot No/mn 9-28×200 Spindle Spindle type type BBT-50 Spindle R.P.M rpm 6000 Spindle Drive Type / DDS Feedrate Rapid Traverse (X/Y/Z) m/min 12/12/12 Cutting Feedrate (X/Y/Z) m/min 8 Tool Changer Automatic Tool Changer / 24T(Option:40/60) Motor Spindle Motor Nm 143-259 Three-Axis Servo Motor Nm 36/36/36 Accuracy Accuracy mm 0.03/0.02/0.015 Repeatability mm 0.018/0.015/0.01 Power Required Power Requirements kva 40 Air Pressure Requirements kg/c㎡ 6^8 Others Extermal Dimensions(L*W*H) mm 9000*5318*5350 Gross Weight t 28
Key words:
Classification:
Product Details
parameters specification
| Subject | Specifictions | Unit | Parameter |
| Travel | X-Axis | mm | 3000 |
| Y-Axis | mm | 2100 | |
| Z-Axis | mm | 1000 | |
| Spindle Nose to Worktable | mm | 200-1200 | |
| Three-Axis Guideway | / | XYZ Heavy Load Roller Liner Guideway | |
| Door Width | / | 2100 | |
| Worktalbe | Worktalbe Size (L*W) | mm | 3000×1800 |
| Maximun Table Load | t | 10 | |
| T-Slot | No/mn | 9-28×200 | |
| Spindle | Spindle type | type | BBT-50 |
| Spindle R.P.M | rpm | 6000 | |
| Spindle Drive Type | / | DDS | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 12/12/12 |
| Cutting Feedrate (X/Y/Z) | m/min | 8 | |
| Tool Changer | Automatic Tool Changer | / | 24T(Option:40/60) |
| Motor | Spindle Motor | Nm | 143-259 |
| Three-Axis Servo Motor | Nm | 36/36/36 | |
| Accuracy | Accuracy | mm | 0.03/0.02/0.015 |
| Repeatability | mm | 0.018/0.015/0.01 | |
| Power Required | Power Requirements | kva | 40 |
| Air Pressure Requirements | kg/c㎡ | 6^8 | |
| Others | Extermal Dimensions(L*W*H) | mm | 9000*5318*5350 |
| Gross Weight | t | 28 |
