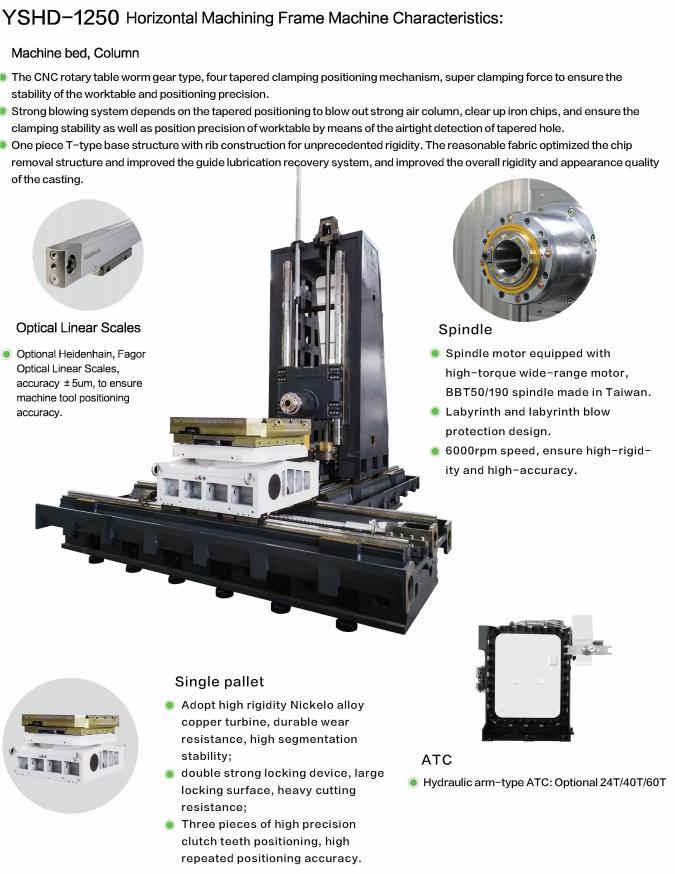

CNC horizontal machining center YSHD-1250
parameters specification Subject Specifictions Unit Parameter Travel X/Y/Z axis mm 2500/1500/1600 Spindle Nose to Worktable mm 350-1950 Spindle Center to Column mm 350-1700 Three-Axis Guideway / Roller Linear Guideway Worktalbe Worktalbe Size (L*W) mm 1250*1250 Maximun Table Load t 5.0 T-Slot No/mn 5-22×200 Number of Pallet pcs 1 Table Indexing / 1°/0.001° Maxiumn TurningDiameter mm Φ2000 Spindle Spindle taper type BBT-50 Spindle speed rpm 6000 Spindle Drive Type / Belt Feedrate Rapid Traverse (X/Y/Z) m/min 10/10/10 Cutting Feedrate (X/Y/Z) m/min 10 Tool Changer Automatic Tool Changer / ARM Type(Servo Drive) Type of Tool Shank type BT-50 Tool Storage Capacity tools 40 Max.Tool Diameter (Adjacent) mm 125 Max.Tool Diameter (Empty) mm 250 Max.Tool Length mm 600 Max.Tool Weight kg 25 Tool Change Time sec 14 Motor Spindle Motor kw 18.5/22 Three-Axis Servo Motor kw 6.0/6.0/6.0 Accuracy Accuracy mm ±0.01 Repeatability mm ±0.005 Power Required Power Requirements kva 40 Air Pressure Requirements kg/c㎡ 6^8 Others Extermal Dimensions(L*W*H) mm 6830*5140*4470 Gross Weight t 23
Key words:
Classification:
Product Details
parameters specification
| Subject | Specifictions | Unit | Parameter |
| Travel | X/Y/Z axis | mm | 2500/1500/1600 |
| Spindle Nose to Worktable | mm | 350-1950 | |
| Spindle Center to Column | mm | 350-1700 | |
| Three-Axis Guideway | / | Roller Linear Guideway | |
| Worktalbe | Worktalbe Size (L*W) | mm | 1250*1250 |
| Maximun Table Load | t | 5.0 | |
| T-Slot | No/mn | 5-22×200 | |
| Number of Pallet | pcs | 1 | |
| Table Indexing | / | 1°/0.001° | |
| Maxiumn TurningDiameter | mm | Φ2000 | |
| Spindle | Spindle taper | type | BBT-50 |
| Spindle speed | rpm | 6000 | |
| Spindle Drive Type | / | Belt | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 10/10/10 |
| Cutting Feedrate (X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | ARM Type(Servo Drive) |
| Type of Tool Shank | type | BT-50 | |
| Tool Storage Capacity | tools | 40 | |
| Max.Tool Diameter (Adjacent) | mm | 125 | |
| Max.Tool Diameter (Empty) | mm | 250 | |
| Max.Tool Length | mm | 600 | |
| Max.Tool Weight | kg | 25 | |
| Tool Change Time | sec | 14 | |
| Motor | Spindle Motor | kw | 18.5/22 |
| Three-Axis Servo Motor | kw | 6.0/6.0/6.0 | |
| Accuracy | Accuracy | mm | ±0.01 |
| Repeatability | mm | ±0.005 | |
| Power Required | Power Requirements | kva | 40 |
| Air Pressure Requirements | kg/c㎡ | 6^8 | |
| Others | Extermal Dimensions(L*W*H) | mm | 6830*5140*4470 |
| Gross Weight | t | 23 |
